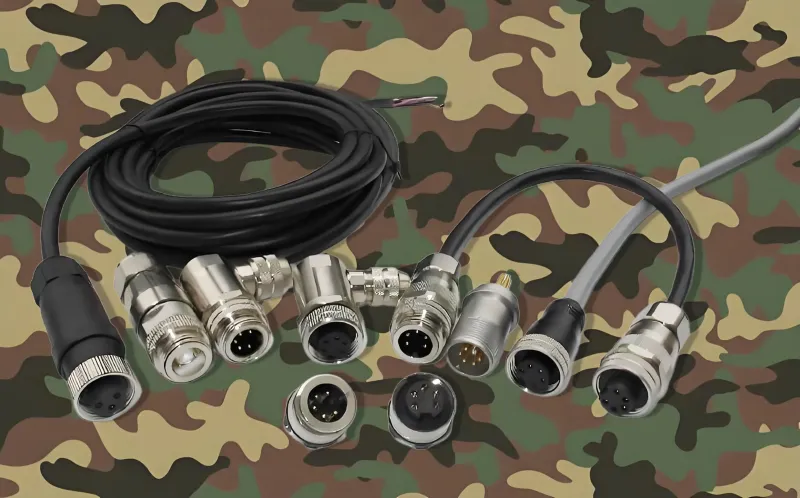

Military waterproof wiring harness knowledge sharing: key technologies to ensure stable operation of equipment
In modern military equipment, the stability of the electrical system directly impacts combat effectiveness. Especially in complex and volatile combat environments, military waterproof wiring harnesses, as core electrical transmission components, shoulder the crucial task of signal and power transmission. Their waterproof, corrosion-resistant, and intelligent features make them the "invisible guardian" of reliable equipment operation. In China's military parades, military waterproof wiring harnesses silently play a role behind various advanced tanks, missile systems, and radar equipment, providing solid support for the electrical systems.
1. What is a military waterproof wiring harness?
A military waterproof wiring harness is an electrical connection system designed specifically for military equipment. Its most significant feature is its high level of protection (typically reaching IP67 or IP68), which protects against intrusion by rain, seawater, mud, sand, and oil. During military parades, whether in the cold of the plateau or the humid heat of the sea, military waterproof wiring harnesses ensure stable operation of the equipment's communication and power systems.
2. Sealing performance of military waterproof wiring harnesses
Military equipment often needs to operate in complex environments such as deserts, plateaus, rainforests, and oceans. To address this, military waterproof cable harnesses undergo the following during design:
- High-pressure waterproofing testing: This simulates operating conditions in deep water or heavy rain.
- Salt spray corrosion testing: This verifies long-term reliability in marine environments.
- Extreme temperature cycling testing: This ensures no seal failure in temperatures ranging from -55°C to +125°C.
These tests ensure that the cable harnesses provide stable electrical performance and signal transmission even under these extreme conditions.
3. Selection of military waterproof wiring harness materials
High-performance materials are the core of military waterproof wiring harnesses.
- Sheath materials: Commonly used are fluoroelastomer (FKM) and cross-linked polyethylene (XLPE), which offer high heat resistance and water resistance.
- Shielding: Braided tinned or silver-plated copper wire is used to enhance electromagnetic compatibility (must comply with IEC EMC standards).
- Improvement strategies: In recent years, research teams have continuously experimented with nano-coating technology and salt-spray-resistant polymers, effectively enhancing corrosion resistance.
At the same time, the production of military waterproof wiring harnesses must adhere to RoHS environmental standards and UL safety certification to ensure reliability while meeting international safety and environmental requirements.
4. Military waterproof wiring harness fault warning system
With the continued development of intelligent warfare, military waterproof wiring harnesses are no longer limited to traditional "static components" but are becoming intelligent and dynamic. The new generation of military waterproof wiring harnesses is equipped with a dedicated fault warning system. Using embedded sensors, this system monitors resistance changes, temperature anomalies, and moisture intrusion during operation in real time. Once the system detects a potential fault, it issues a timely warning via the equipment's accompanying monitoring platform, enabling troops to complete maintenance operations before conducting combat missions and preventing unexpected failures from negatively impacting combat operations.
5. What are the applications of military waterproof wiring harnesses in military equipment?
Military waterproof wiring harnesses have a wide range of applications, including:
Army equipment: tanks, armored vehicles, artillery systems
Naval equipment: ship radars, sonar systems, submarine electronics
Air Force equipment: fighter jets, early warning aircraft, drones
Strategic equipment: missile launchers, communications, and command systems
6. Comparison between military waterproof wiring harness and ordinary waterproof wiring harness
| Contrast Dimensions | Military waterproof wire harness | Ordinary waterproof wiring harness |
| Material and Conductor | Nickel-plated copper wires, stainless steel connectors, and fluororubber seals are used for stronger corrosion resistance. Conductors are mostly multi-stranded copper wires to enhance flexibility and tensile strength. | Mainly ordinary copper conductor or PVC insulation layer, some models use ordinary rubber seal, which has weak corrosion resistance. |
| Protection level | It must meet IP68 (continuous immersion) or higher protection standards, and key components must be double-sealed with O-rings and potting glue. | Generally, IP67 (short-term water immersion) or below, relying on a single seal or heat shrink tubing for protection. |
| environmental adaptability | Temperature range: -40℃ to 125℃, resistant to vibration, impact, salt spray, and electromagnetic interference (compliant with GJB599A) | Temperature range: -20℃ to 85℃, only basic waterproof, limited vibration, and corrosion resistance. |
| Structure and redundancy design | Adopt a radial waterproof structure (such as a cross-linked polyethylene insulation layer) and a redundant connection design to reduce the risk of single-point failure. | It is an axial waterproof structure (such as an ordinary rubber sheath), with no redundant design, and the sealing depends on the consistency of the process. |
| Mechanical strength and lifespan | The sheath is made of nylon reinforced glass fiber or PBT material, with a tensile strength of ＞50N and a plug-in life of ≥500 times. | Ordinary rubber or PVC sheath, tensile strength ≤ 30N, plug-in life about 200 times. |
| Standards and Certifications | Need to pass military certification, such as MIL-STD-810G (environmental adaptability) and MIL-DTL-5015 (connectors) | Complies with common industrial standards (such as IEC 60529) without strict military regulations. |
| Typical application scenarios | Submarines, armored vehicles, aircraft, and other extreme environments (high humidity, strong vibration, electromagnetic interference) | Civilian equipment, outdoor lighting, shallow water electrical appliances, and other common humid environments. |
7. What are the common connectors used in military waterproof wiring harnesses?
Military waterproof cable harnesses are typically used with specialized connectors:
MIL-DTL-38999 series: Widely used in aerospace and military equipment, offering high levels of protection and vibration resistance.
M12/M23 waterproof connectors: Commonly used in sensors and control modules.
Circular threaded connectors: Suitable for quick connection and disconnection in rugged environments.
8. FAQs: Frequently Asked Questions About Military Waterproof Wiring Harnesses
Q1: What is the difference between military waterproof wiring harnesses and standard waterproof wiring harnesses?
A1: Military waterproof wiring harnesses are far superior to civilian products in terms of material selection, sealing level, anti-interference, and corrosion resistance.
Q2: What is the lifespan of military waterproof wiring harnesses?
A2: With normal maintenance, the lifespan can reach 15-20 years, meeting long-term service requirements.
Q3: Can military waterproof wiring harnesses be customized?
A3: Yes, we can provide customized design and production based on the needs of different equipment.
9. Military Waterproof Wiring Harness Summary
Military waterproof wiring harnesses are not only the core electrical connection for military equipment but also a critical component in ensuring the high reliability and sustained combat capability of combat systems. From waterproofing and corrosion protection to intelligent monitoring and customized design, they play an irreplaceable role in both parade grounds and actual combat environments. In the future, with the advancement of intelligent technology and new materials, military waterproof wiring harnesses will achieve even greater performance breakthroughs, continuing to safeguard the operation of national security equipment.
