Photovoltaic (PV) cables stay exposed to sunlight, temperature changes, moisture, and mechanical stress over the life of a system, and a cable that is not matched to its environment can lose insulating integrity and cause faults. This guide is written for PV system designers, procurement engineers, and wire harness manufacturers. It explains why weather resistance matters, how to distinguish a single UV test from overall weather resistance, which standards and test documentation to check, and how to select a cable for specific installation conditions. After reading, you should be able to answer three core questions: Is this cable suitable for the intended outdoor environment? Which supplier documents support the weathering claim? And which connectors and installation factors must also be verified?
Why Weather Resistance Matters for Solar Cables
Outdoor PV cables face several overlapping stresses. UV radiation, heat, temperature cycling, moisture, and mechanical loading act together, so suitability should be assessed against the combined field conditions rather than a single test.

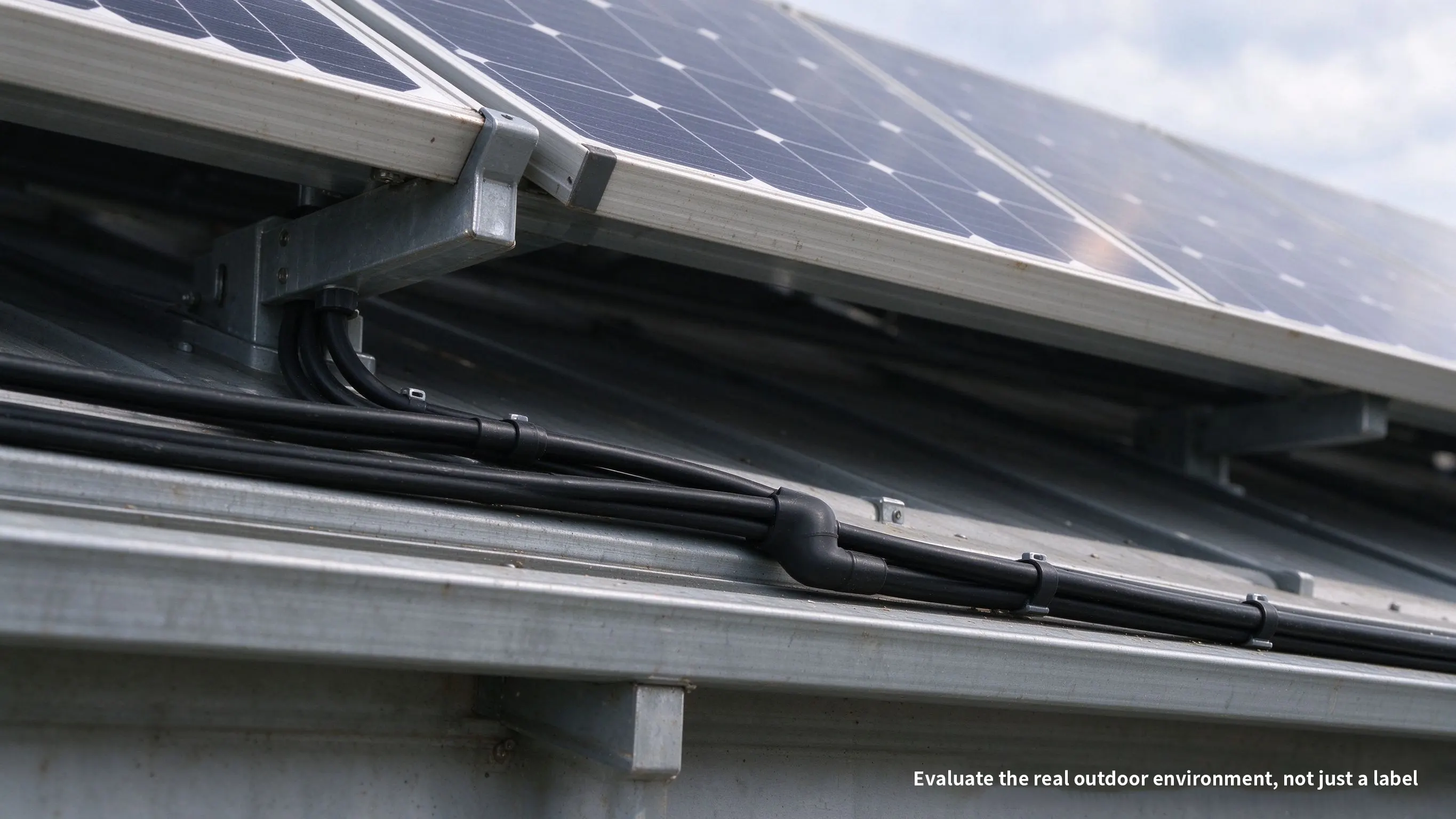

UV Radiation and Insulation Aging
Ultraviolet light can initiate photo-oxidation in polymer insulation and sheathing, leading to discoloration, surface chalking, fine cracking, and gradual changes in mechanical properties. The rate depends on the polymer formulation, UV exposure, temperature, local climate, and cable construction, so performance should be verified for the specific environment rather than assumed from a label.
Temperature Cycling and Thermal Stress
Day-to-night and seasonal temperature swings cause repeated expansion and contraction in insulation, sheath, fixing points, and terminations, which can fatigue materials over time. Sustained heat also accelerates polymer aging. Temperature ratings are defined by the applicable product standard and should be checked against it for the intended installation.
Moisture, Ozone and Mechanical Exposure
Jacket damage can create a path for moisture ingress, potentially affecting insulation performance. Ozone exposure may contribute to stress cracking in susceptible polymer compounds, depending on the material and site conditions. Abrasion against racking or metal edges, wind-induced movement, and mechanical load add further stress. These factors are evaluated by separate tests, so a single UV result cannot confirm full weather resistance.
What Makes a Solar Cable UV-Resistant?
UV resistance results from the finished cable: the compound formulation, stabilizer and pigment loading, and the construction of insulation and sheath together determine weathering behavior. Material type alone is not a reliable indicator.

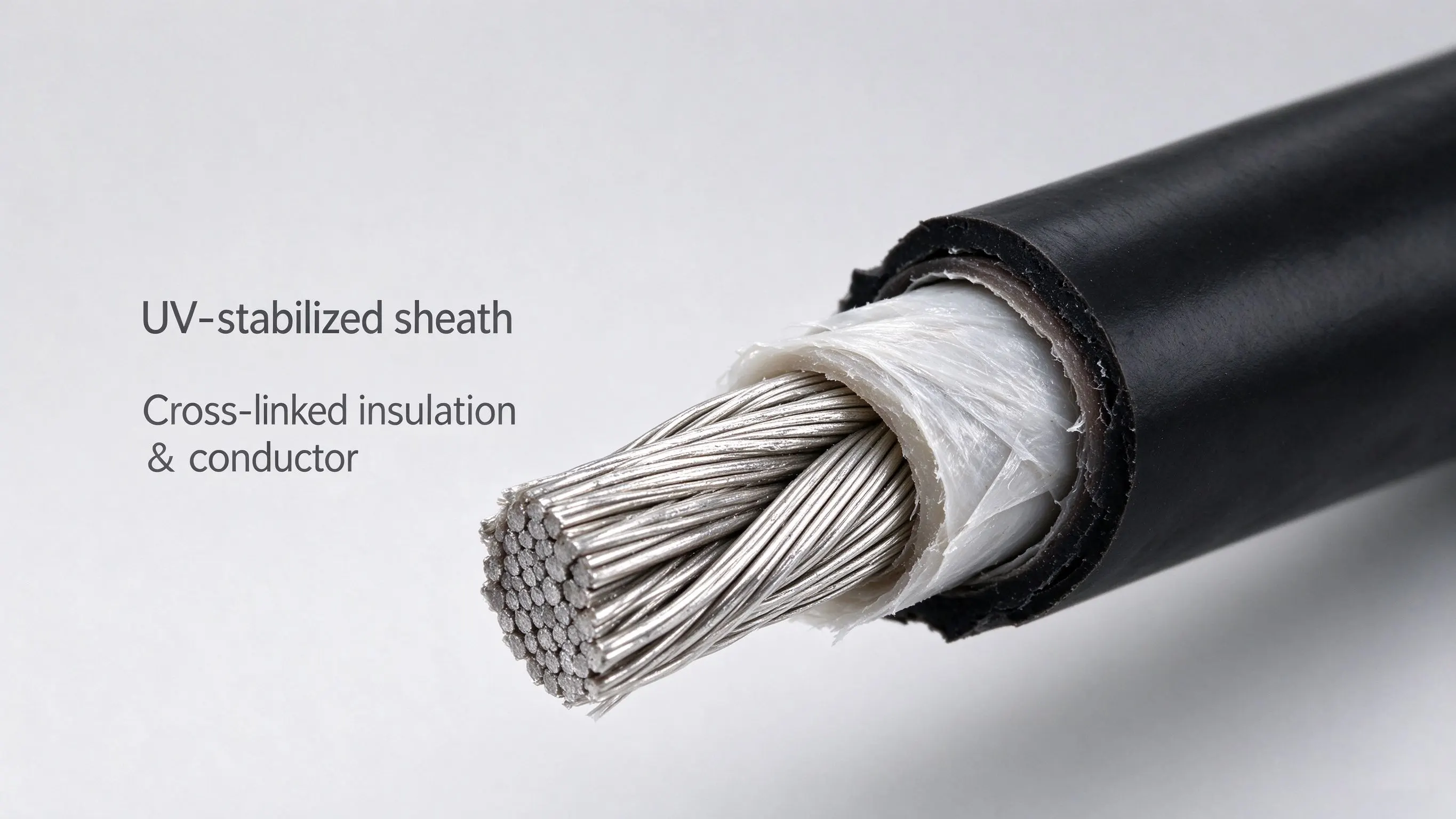

Insulation and Sheath Materials
Photovoltaic cables commonly use cross-linked polymer insulation and sheathing, but UV stability depends on the specific compound formulation and the finished cable construction. Stabilizers and pigments may contribute to weathering performance, yet neither a material name (for example XLPE, XLPO, or PVC) nor the jacket color proves compliance by itself. Confirm the applicable product standard, datasheet, and supporting test or certification records before specifying a cable for exposed outdoor use. Material selection should also account for temperature, moisture, mechanical exposure, and the applicable fire and installation requirements. LSZH or low-halogen compounds are used where smoke or fire requirements call for them; they are not a universal requirement for every rooftop system.
UV Resistance vs. Overall Weather Resistance
UV resistance addresses photodegradation from sunlight. Overall weather resistance also covers heat, moisture, ozone, and mechanical durability, each verified by different tests. The table below lists the key properties and what to check for each.
|
Performance area
|
What it addresses
|
What to verify
|
|---|---|---|
|
UV resistance
|
Photodegradation, chalking, surface cracking
|
Sheath weathering test; appearance and property retention after exposure
|
|
Thermal endurance
|
Heat aging and thermal cycling
|
Temperature rating; heat and cycling test results
|
|
Moisture and damp-heat stability
|
Water ingress, insulation resistance
|
Damp-heat and water immersion test data
|
|
Ozone resistance
|
Stress cracking in susceptible compounds
|
Ozone test results assessed against the applicable standard's acceptance criteria
|
|
Mechanical durability
|
Abrasion, bending, wind movement
|
Abrasion and bending test results
|
Because each property is tested separately, a single result should not be treated as proof of full outdoor suitability.
Standards and UV Resistance Testing
Standards define both the scope of a cable type and the test methods used to verify weathering. Referencing the correct standard and reading the test report carefully builds reliable technical evidence.
IEC 62930 and Other Applicable Standards
IEC 62930:2017 applies to specific single-core, cross-linked insulated and sheathed cables for the DC side of photovoltaic systems, with a rated DC voltage up to 1.5 kV, and includes provisions for weathering and UV-related evaluation. It does not describe AC cables or multi-core control cables, which are covered by other standards. It defines a continuous conductor rating of 90 °C, with limited operation at 120 °C for up to 20,000 hours; these ratings apply only to cables built to this standard and should not be treated as universal limits for all solar cables. For North American installations, UL 4703 covers sunlight-resistant photovoltaic wire with multiple dry temperature ratings (for example 90 °C, 105 °C, 125 °C, or 150 °C) and a 90 °C wet rating. Match the standard to the product and target market, and verify the specific certification and datasheet. Because IEC standards are often published for a fee, check the relevant edition's original text before relying on any specific test condition or acceptance value.
How to Verify Supplier Test Documentation
When reviewing a UV or weathering test report, check the following items:
-
The standard name, edition or version, and the test methods used.
-
Whether the tested sample model and cable construction match the product you intend to buy.
-
The UV exposure conditions and the test duration.
-
Appearance and relevant performance results before and after exposure.
-
The acceptance criteria and the final conclusion stated in the report.
Example: if a datasheet claims a cable is "UV-resistant per IEC 62930," confirm that the report names IEC 62930 and the correct edition, that the tested model matches the purchased model, that the exposure conditions and duration are listed, and that the post-test results meet the stated acceptance criteria. If connectors are part of the assembly, also confirm whether the report covers the cable only or the cable plus connectors; conclusions for the cable alone should not be extended to the full assembly.
Why a UV Test Does Not Prove a Specific Service Life
Accelerated laboratory aging provides a comparative benchmark, not a direct conversion into years of outdoor service. A given number of UV test hours cannot be translated into a field lifetime without additional field or durability data, and a UV test alone does not demonstrate the reliability of a complete PV system. Treat any claim that equates test hours directly to a fixed outdoor life with caution unless it is supported by product-specific data and the applicable standard.
Cable Selection and Installation Conditions
Matching the cable to the actual installation environment is the step that turns test results into a sound engineering decision.
Outdoor Exposure, Temperature and Routing
For rooftop systems, check direct sunlight, roof-surface temperature, fixing method, and abrasion against module frames or metal edges. For ground-mount arrays, consider UV, temperature variation, moisture, and cable management, and confirm that any direct ground contact or burial is permitted by the cable's rating and applicable installation requirements. For conduit or trunking installations, assess the conduit's own protection, internal temperature rise, moisture accumulation, and the applicable installation code. For high-temperature or special environments, compare the actual ambient conditions with the material's tolerance and the product's rated values. Conductor sizing is a separate engineering task: it must be calculated from current, circuit length, installation method, temperature, and applicable codes, and cannot be chosen solely from a UV rating.
Connector and Accessory Compatibility
Evaluate connectors, seals, cable ties, and other accessories for the same environmental requirements as the cable. Research on photovoltaic cable connectors has documented degradation in connector materials and components, supporting the need to assess connector condition alongside cable durability. Confirm that connector housings and elastomer seals are rated for the intended environmental conditions and are approved within the selected connector system, and check compatibility between the cable jacket and connector materials before use.
Supplier Verification Checklist
Separate the basic checks that apply to every purchase from the project-specific evidence you may request in addition.
Basic verification applies to all projects:
-
Product model, intended application, and rated voltage.
-
Applicable standard and certification or conformity documents.
-
Temperature rating and conductor specification from the datasheet.
-
Insulation and sheath material information.
-
Batch identification and traceability records.
Project-specific evidence, added when required by the environment or the application:
-
UV and weathering test reports or relevant conformity files.
-
Evidence for special conditions such as ozone, coastal salt, or extreme cold.
-
Material batch information and connector compatibility evidence.
Conclusion
Reliable outdoor PV cable selection requires checking product specifications, environmental conditions, test documentation, installation practices, and connector compatibility together. By mapping the site's stressors, verifying the right standard and test report, and confirming the installation method and accessories, you reduce the risk of premature degradation caused by selection or documentation errors. This review helps identify specification and documentation gaps; it cannot predict the cable's exact service life, which depends on the specific product and its real environment.
Frequently Asked Questions
Are all solar cables UV-resistant?
No. Not every cable described as suitable for solar applications is rated for exposed outdoor use. UV resistance depends on the compound formulation and construction, so verify the intended application, applicable standard, and supporting test records rather than relying on the label.
What is the difference between UV resistance and weather resistance?
UV resistance covers photodegradation from sunlight. Weather resistance also includes heat, moisture, ozone, and mechanical durability, each of which is checked separately. For the full picture, review the table in the "What Makes a Solar Cable UV-Resistant?" section.
Which standards apply to photovoltaic cables?
IEC 62930 covers specific single-core DC cables up to 1.5 kV for photovoltaic systems. UL 4703 covers sunlight-resistant photovoltaic wire in North America with multiple dry temperature ratings. Match the standard to the product and market; see the Standards section for how to review a test report.
