Open a laptop, a printer, a camera or a car display and you will find flat cable: FFC (flexible flat cable) and FPC (flexible printed circuit) — the constructions that moved electronics' internal wiring from round looms into millimeters of height. They look interchangeable and behave differently. This guide explains both, and how to specify assemblies that work.
FFC vs FPC: The Structural Difference
FFC is a standard product: parallel flat conductors laminated between insulation films, defined by pitch, conductor count, length, and conductor style (type A: exposed same side; type B: opposite sides; with or without stiffener). It is manufactured to standard specifications and cut to length — the 'C' in FFC is cable.

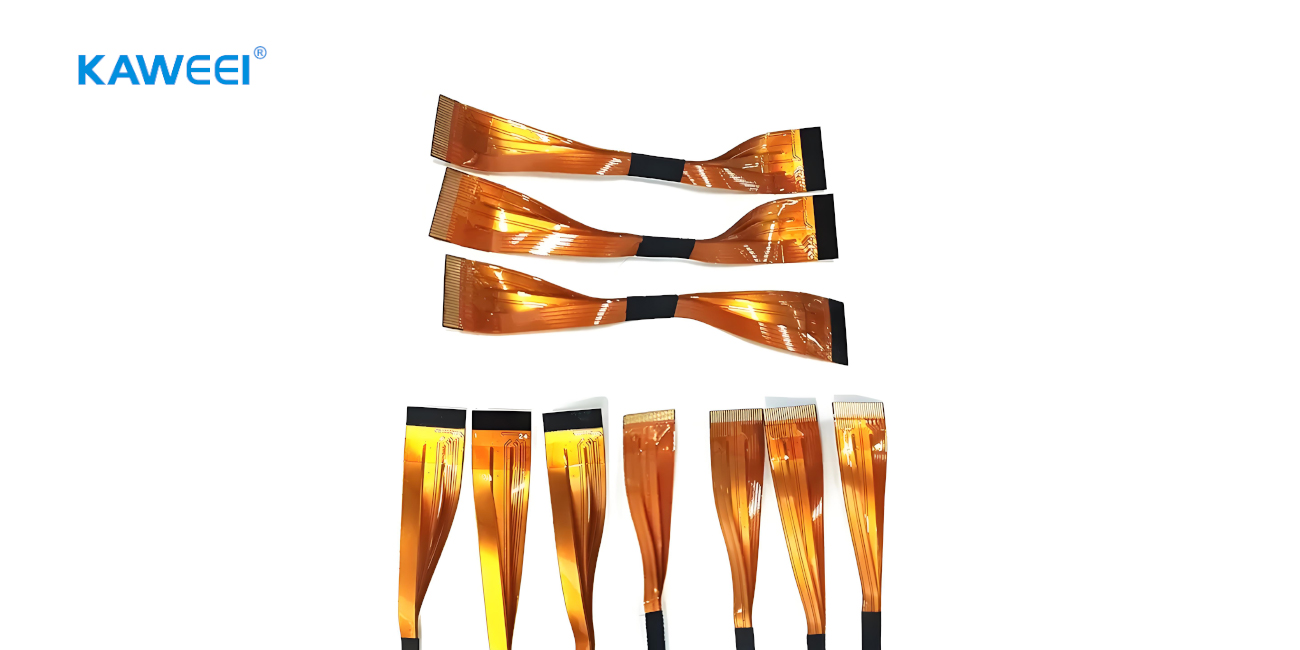

FPC is a printed circuit in flexible form: copper patterns etched on polyimide, custom-designed per application, able to change geometry, add components, and route in shapes no parallel-conductor cable can. The 'P' is the point — it is a circuit, not a cable. Choosing between them: standard parallel connections with standard pitches → FFC, cheap and available; non-parallel routing, impedance control, or component integration → FPC.
Pitch and Connector Compatibility
FFC/FPC connector pitches run from 0.5mm (dominant) through 1.0mm and 1.25mm to 2.54mm — and the cable pitch must match the connector exactly, with contact style matching too: ZIF (zero insertion force) connectors clamp the cable between contacts; LIF variants slide it in. Compatibility details that cause field failures: exposed-conductor side (type A vs B) must match the connector's contact geometry, stiffener thickness must sit inside the connector's clamping range, and cable thickness tolerance matters at 0.5mm pitch in ways that ordinary tolerances don't. Our customizable flat ribbon guide covers the round-family alternative.
Selection Parameters
Specifying an FFC assembly means: pitch, conductor count, length (shorter is always electrically better — these are unshielded structures), conductor exposure type, stiffener or not, and — for signal-carrying assemblies — ground plane options (FFC with ground/return conductors interleaved improves noise behavior in display and camera links). Length limits are real: FFC at 0.5mm pitch carries high-speed signals only over short distances; our micro HDMI analysis shows where the flat constructions meet their limits.
Quality and Failure Modes
FFC/FPC assemblies fail at predictable points: conductor fractures at the bend near the connector (strain relief and routing radius prevent it — bend radius is the first routing rule), contact wear at ZIF connectors through repeated re-insertion (specify the cycle count and choose connectors accordingly), and delamination at heat exposure (adhesive systems rated for the application temperature). Manufacturing quality shows in conductor pitch consistency and clean cut edges — measurable at incoming inspection.
Kaweei Flat Cable Assembly Service
Kaweei supplies FFC assemblies in standard specifications and custom lengths/configurations, and manufactures FPC-based assemblies through partner processes for applications needing printed flexibility. Contact us with your pitch, pin count and routing constraints; our flexible flat cable guide covers the family's automotive variants.
