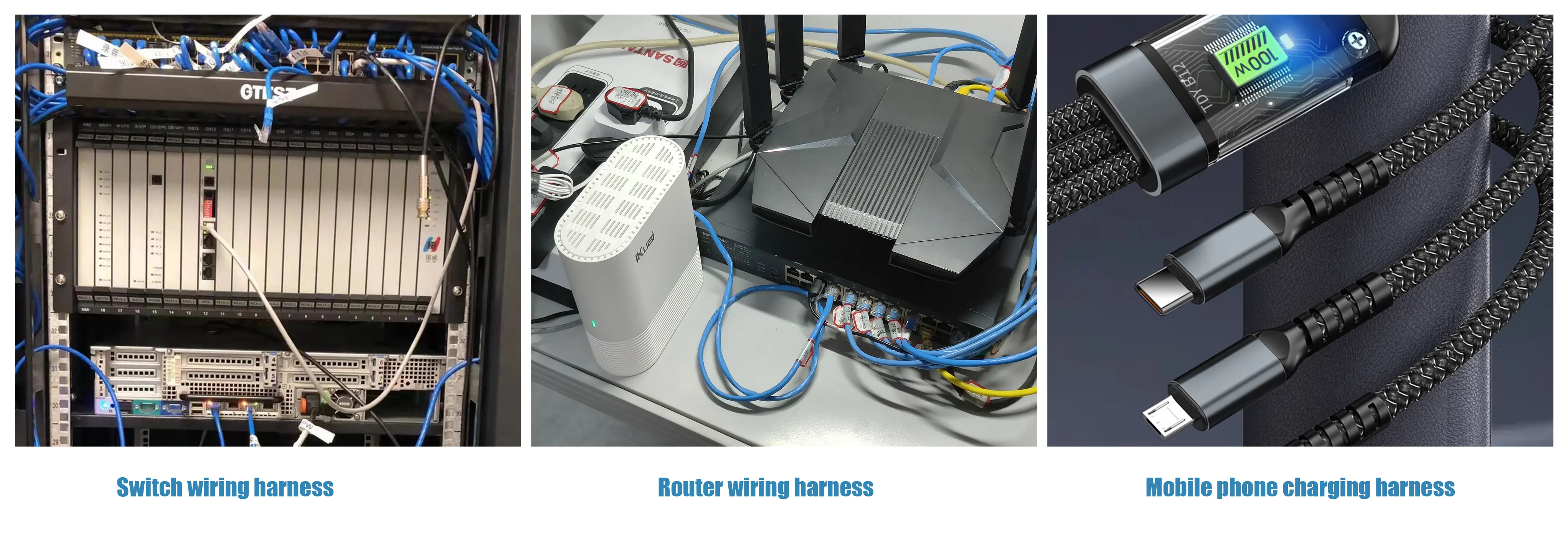

Most wire harness guides classify products by end industry. This guide takes an engineering approach, organizing wire harnesses by the requirements that shape their design: operating environment, electrical load, signal integrity, and physical structure.
These four decision areas help establish the main design constraints. The final configuration depends on how environmental, electrical, mechanical, and manufacturing requirements interact. The goal is not to identify one universal solution, but to narrow the options to a practical, manufacturable design.
Environmental Requirements
The environment eliminates design options faster than any other factor. Consider the conditions the harness will face in service, and match the materials and construction to the specific exposure.
|
Exposure
|
Candidate construction
|
Conditions to verify
|
|---|---|---|
|
Dry indoor cabinet
|
Standard PVC insulation may be suitable
|
Temperature, rated voltage, flame-retardance requirement, and mechanical wear in the application
|
|
High heat (engine bay, industrial oven, motor drive)
|
Cross-linked or silicone insulation with temperature-rated sleeving
|
Actual temperature, rated voltage, mechanical, and chemical environment — the two material families are not freely interchangeable
|
|
Water and washdown
|
Sealed connector systems with wire seals and overmolded transitions
|
Define an IP rating per zone. The rating applies to a specific connector, enclosure, or complete assembly in its specified installation state — a single sealed connector does not make the whole harness reach that rating
|
|
Oil and metal debris (machine tools, engines)
|
PUR outer jacket, with armor where needed
|
Oil type and chemical compatibility of the chosen PUR formulation; abrasion, impact, and cleaning method determine whether armor is justified
|
|
UV and weather (solar, outdoor signage)
|
UV-stable jacket and sealed connectors
|
Long-term UV exposure can degrade, crack, or reduce performance of standard PVC. Select materials on the basis of tested weathering data rather than a fixed season
|
|
Repeated flex (robots, doors, cable chains)
|
Chain- or robot-rated cable with fine stranding
|
Flex life, bend radius, and number of cycles the application requires
|
Repeated flexing is one of the most commonly overlooked specifications in industrial procurement. If the harness moves in service, the flex rating of the cable — not just the insulation type — needs to be specified up front.
Electrical Load and Voltage Requirements
Conductor sizing depends on more than the nominal current. The required current, allowable temperature rise, circuit length, voltage-drop limits, insulation rating, and installation conditions all play a part. Bundling, ambient temperature, and terminal ratings can further limit the permissible current.
-
Low-current signal circuits can use relatively small conductors when electrical resistance, mechanical strength, connector compatibility, and applicable requirements permit. Signal integrity also depends on routing, shielding, grounding, and the electrical characteristics of the circuit.
-
Power circuits typically require checks for thermal ampacity and voltage drop. Final conductor sizing must also account for insulation temperature ratings, ambient conditions, conductor bundling, terminal and connector ratings, and applicable standards.
-
High-voltage battery applications may also require insulation coordination, shielding where specified, high-voltage interlock circuits, and application-specific identification requirements.
In automotive, industrial, and battery systems especially, do not select AWG from current alone. The gauge guide on this site walks through the calculation workflow.
Signal Integrity and Circuit Protection
Identify the sensitive circuits early in the design process. Encoder feedback, low-level analog lines, differential data links, and RF runs may require specific routing, shielding, twisting, impedance control, or coaxial construction. These requirements often shape the bundle more than general-purpose circuits do, although in high-current power looms conductor temperature rise, bundle size, and voltage drop may dominate instead.
-
Encoder and analog feedback lines: shielding may be needed, depending on signal characteristics, cable routing, and the electromagnetic environment.
-
Differential data pairs: controlled pair geometry and characteristic impedance where required by the interface specification.
-
RF runs: true coaxial construction.
When diagnosing intermittent faults, do not assume the harness is the cause. Potential sources include connector contact resistance, broken conductors, shielding or grounding issues, power-supply instability, sensor faults, and electronic or software problems. Inspect the relevant connections, conductor integrity, grounding, and electromagnetic compatibility before deciding whether the harness or the electronic system needs redesign.
Physical Structure and Protection Methods
This final area selects the physical form of the harness. These options are not strictly parallel: overmolding is a process applied to a structure, not a separate structure category.
|
Option
|
What it is
|
Typical use
|
|---|---|---|
|
Open loom
|
Wires bundled with tape, braided sleeving, or convoluted tubing
|
Lowest cost, field-serviceable; standard for appliance and vehicle interiors
|
|
Jacketed round assembly
|
Wires enclosed in an extruded jacket, forming one mechanical entity
|
Clean routing; standard for industrial machinery
|
|
A flexible flat cable structure with conductors on a flat pitch and controlled spacing, distinct from a conventional round-wire harness
|
Space-constrained installations where conductor pitch must be held
|
Overmolding is a protection and strain-relief process rather than a distinct harness structure. It can be applied at connector exits or transitions when the design requires additional sealing, mechanical support, or environmental protection. Its suitability depends on the application requirements, tooling cost, and production volume.
Two Wire Harness Selection Examples
These examples show how the four decision areas combine. The candidate construction is a starting point; the conditions to verify determine whether it is the right choice for a specific project.
|
Application
|
Design constraints
|
Candidate construction
|
Conditions to verify
|
|---|---|---|---|
|
Solar tracker signal harness
|
Outdoor UV, cyclic flex, low-level signals
|
UV-stable jacket, fine-strand shielded pairs, sealed connectors, IP65 or higher target, jacketed round form
|
UV and temperature data for the chosen jacket; whether shielding is required by signal type and the electromagnetic environment; whether the IP level matches installation, water, and cleaning exposure; and, for continuous tracking motion, the required bend radius, number of cycles, and actual movement path
|
|
Washing machine main loom
|
Humidity, localized heat near the heater, cost pressure
|
Flame-rated PVC insulation, sealed connectors where water or steam exposure requires them, heat-resistant sections near the heater, open-loom form with tape bundling
|
Actual water, steam, condensate, detergent, and temperature exposure in each zone; material selection near the heater should follow the measured temperature and applicable safety requirements
|
Information Needed for Custom Wire Harness Design
When you have requirements but not yet a drawing, the following information lets our engineering team move quickly toward a buildable specification.
|
Item
|
What to provide
|
|---|---|
|
Application and environment
|
Equipment type and the working environment it will operate in
|
|
Electrical requirements
|
Voltage, current, and signal types
|
|
Mechanical requirements
|
Length, wire gauge, and connector requirements
|
|
Motion and duty
|
Movement, bending, and expected service life
|
|
Protection and compliance
|
IP rating, certification, and test requirements
|
|
Reference material
|
Drawing, bill of materials, sample, or reference part number
|
Frequently Asked Questions
What is the fastest way to classify a wire harness?
As an initial screening sequence, start with the environment, then the electrical load, then the signal types, then the physical structure. This order eliminates options quickly, although some projects are constrained from the start by electrical safety or mechanical space requirements.
Do I need a sealed connector for an IP65 rating?
A sealed connector is part of the solution, but the IP rating applies to the connector, enclosure, or complete assembly in its specified installation state. Every transition and interface that water can reach must be sealed to achieve the rating.
When is overmolding worth the tooling cost?
Overmolding is justified by harsh-duty environments that need sealing and strain relief, or by high-volume production where the tooling cost is amortized across many units.
