A trailer wiring harness must match the connector interface, pin assignments, and electrical requirements of both the tow vehicle and the trailer. Differences in wiring conventions can make color codes misleading, even when connectors physically fit. This guide covers common trailer connector types, SAE and ISO wiring standards, circuit identification, and compatibility checks, along with the key specifications to confirm when selecting or ordering a custom harness.
What Is a Trailer Wiring Harness?
A trailer wiring harness is the electrical assembly that transfers signals and power between the tow vehicle and the trailer. It distributes lighting, braking, and auxiliary circuits from the vehicle connector to the trailer's lamps and equipment, and returns through a designated ground path.
Main Components of a Trailer Wiring Harness
Understanding the parts helps when specifying or inspecting a harness:
-
Conductors — insulated copper wires sized for the current of each circuit.
-
Connector — the plug/socket pair that mates the vehicle and trailer interfaces.
-
Terminals — the metallic contacts that establish electrical connection, terminated using the method specified for the connector and application.
-
Protective sleeving — conduit or tape that shields wires from abrasion, moisture, and heat.
-
Branches and strain relief — junctions where circuits split to individual lamps, and support that prevents pulling forces on the connection.
Common Electrical Circuits in Trailer Systems
-
Tail and running (marker) lights
-
Left and right turn signals (often combined with brake/stop)
-
Brake (stop) lamps
-
Ground return
-
Reverse (backup) lamps — where supported
-
Electric trailer brakes
-
Auxiliary power (battery charge or accessory feed)
Common Trailer Wiring Harness Connector Types
Connectors are most often described by their number of positions. However, the number of pins alone does not define the function of each contact — similar-looking plugs can carry different circuits depending on the wiring scheme used. Physical mating does not guarantee electrical compatibility; always cross-check pin assignment rather than relying solely on wire color coding.
|
Connector type
|
Typical application
|
Key consideration
|
|---|---|---|
|
4-way flat
|
Basic lighting
|
Tail/marker, left and right turn/stop, and ground; no reverse or auxiliary power circuits.
|
|
5-way flat
|
Trailers with reverse trigger or hydraulic brake lock-out
|
The fifth circuit function must be confirmed against the specific wiring scheme.
|
|
6-way round
|
Medium-duty and older conventional trailers
|
Pinout varies widely; never assume a universal configuration.
|
|
7-way blade
|
North American RV, travel trailers, and multi-function utility trailers
|
Supports extended circuits; pin functions depend on the wiring scheme in use.
|
|
7-pin round / 13-pin
|
European trailer fleets
|
Follow ISO 1724 (7-pin) or ISO 11446 (13-pin) regional standards; do not interchange with North American 7-way blade.
|
Trailer Wiring Standards and Pin Configurations
Standards define connector geometry and pin function, which serve as the compatibility baseline. Conventional wire color codes are separate market practices and may not align with formal standards.
SAE J2863 and Seven-Position Trailer Connectors
SAE J2863 specifies requirements for seven-position trailer tow connector interfaces used in applicable low-voltage automotive and recreational vehicle applications. It provides a common basis for connector design and compatibility. Confirm the applicable edition and verify the connector's pinout and performance requirements before specifying a harness.
SAE J1239 and Multi-Conductor Trailer Connections
SAE J1239 specifies wiring and rectangular connector rules for four-, five-, and eight-conductor trailer harnesses for trailers within its specified scope, including circuit functions, wire color coding, and protection against electrical hazards. Connector geometry, conductor count, and pin assignment should be checked against the applicable standard and the actual harness documentation.
European Trailer Connector Standards
ISO 1724 specifies the seven-pole Type 12N connector for 12 V nominal towing and towed vehicle electrical systems, primarily covering normal lighting functions. ISO 11446 establishes the 13-pole trailer connector with additional reverse light, permanent 12 V power, and a switched charging feed. The appropriate interface depends on the vehicle, trailer configuration, and regional requirements; confirm the applicable edition and function allocation before specifying.
Pin Functions vs. Wire Color Codes
Applicable wiring standards define connector pin functions, while wire colors serve as identification conventions. The same wire color may be used for different circuits in different wiring schemes, so always verify circuit assignments against the applicable connector pinout and manufacturer documentation rather than relying on wire color alone.

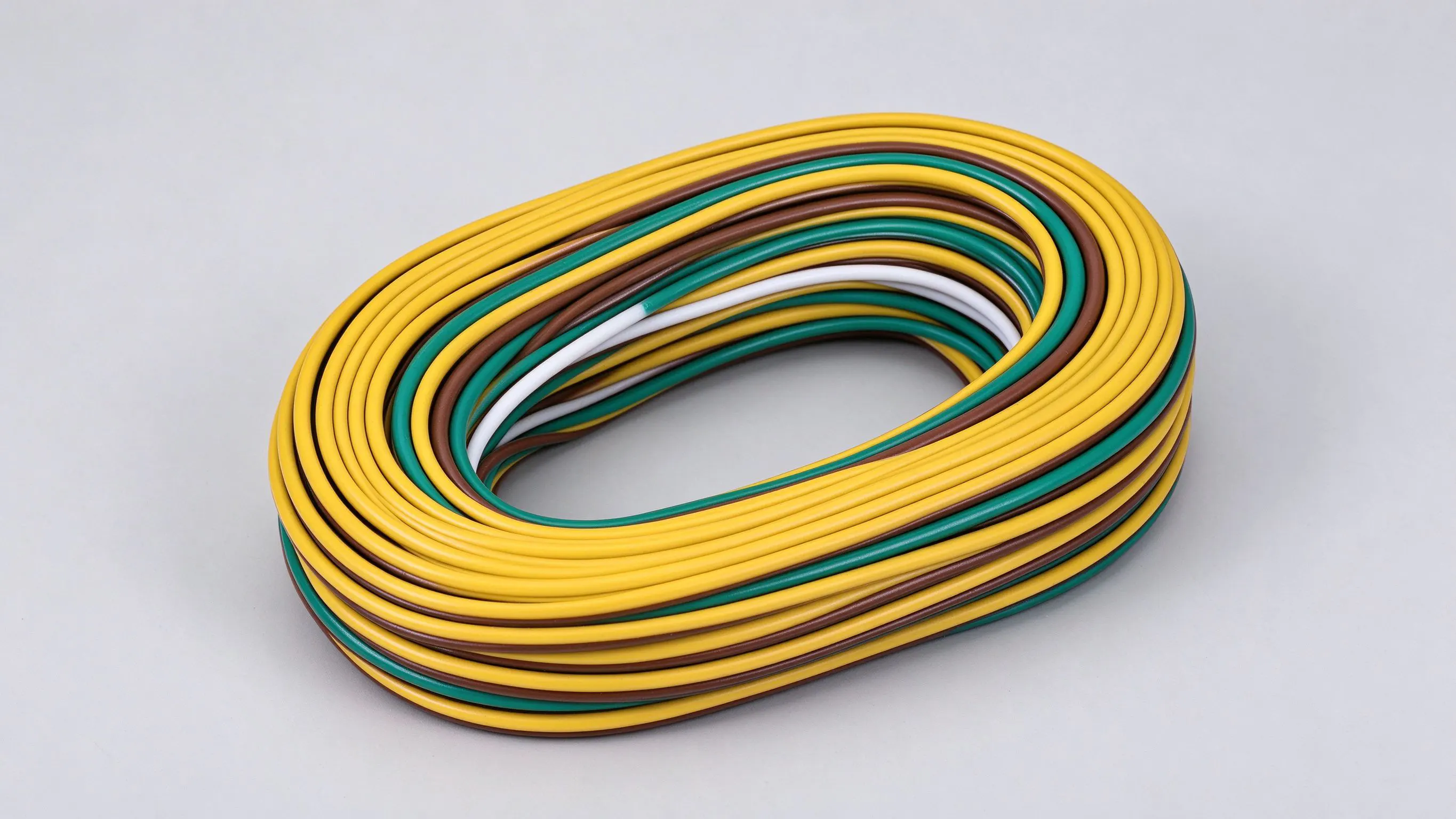

Trailer Wiring Color Codes and Circuit Functions
Common 4-Way Flat Wire Colors
The table below reflects the typical color allocation for a 4-way flat connector. It is a common convention for reference only; never use color alone to confirm circuit assignment.
|
Color
|
Typical function
|
|---|---|
|
White
|
Ground return
|
|
Brown
|
Tail / running / marker lights
|
|
Yellow
|
Left turn / stop lamp
|
|
Green
|
Right turn / stop lamp
|
7-Way Connector Pin Functions
The table shows one common North American 7-way blade wiring scheme for reference. Pin functions and colors vary with the wiring convention in use, so confirm the pinout against the applicable standard and the manufacturer's documentation before connecting.
|
Pin
|
Typical function (common RV scheme)
|
Typical color
|
|---|---|---|
|
1
|
Ground return
|
White
|
|
2
|
Tail / running / marker lights
|
Brown
|
|
3
|
Left turn / stop
|
Yellow
|
|
4
|
Right turn / stop
|
Green
|
|
5
|
Electric trailer brakes
|
Blue
|
|
6
|
Reverse (backup) lamps
|
Red / Orange / Purple
|
|
7
|
Auxiliary 12 V power
|
Black / Orange
|
The 7-way table is a reference example only. Pin numbering direction differs between the plug face, the wire-entry side, and the socket, and colors change with the wiring convention. Always verify against the connector pinout drawing before wiring or troubleshooting.
Differences Between SAE and Traditional RV Color Schemes
Even for identical 7-way blade connectors, pin-to-color mapping can differ between SAE-compliant wiring and older RV industry conventions. A pin assigned to electric brakes in one scheme may carry auxiliary charging power in another, so verify the connector's pinout and circuit functions against the applicable standard or manufacturer documentation before connecting the harness.
Why Pinout Verification Matters
Two connectors can physically lock together while their circuits remain electrically mismatched. To verify, locate the official pinout drawing for the connector, compare each pin against the intended circuit, and confirm with continuity testing or a function check on the installed vehicle.
How to Choose the Right Trailer Wiring Harness
Match the Connector to the Tow Vehicle and Trailer
Confirm the connector form factor on both the tow vehicle and the trailer. Verify the actual number of active circuits on both sides, rather than only counting physical pin positions.
Confirm Voltage, Current, and Wire Gauge
Wire size cannot be determined solely by pin count. Follow this engineering workflow to select the correct conductor:
-
Record steady-state operating current and transient or inrush current, where applicable, for each circuit.
-
Calculate total one-way conductor length, supply voltage, and maximum allowable voltage drop.
-
Select wire gauge based on conductor material, insulation temperature rating, wire bundling factor, and on-site ambient conditions.
-
Match fuse rating, terminal current capacity, and conductor size consistently.
-
Run loaded electrical verification for high-current circuits including electric brakes and auxiliary power feeds.
An undersized conductor can cause excessive voltage drop and may overheat if operating current exceeds the ampacity rating under actual installation conditions.
Consider Cable Length and Voltage Drop
Longer wiring runs increase total circuit resistance. As a rule, upsize conductors for extended lengths so voltage drop stays within the tolerance of lighting and brake control circuits.
Evaluate Moisture, Vibration, Abrasion, and Corrosion
Trailer harnesses operate in exposed outdoor conditions. Moisture ingress, corrosion, vibration, and abrasion can contribute to intermittent electrical faults. Connector sealing, terminal retention, strain relief, and appropriate wire protection should be considered during harness design.
Check Braking and Auxiliary Power Requirements
Electric brake systems, hydraulic surge brakes, and battery charging circuits create different electrical loads. Confirm brake type and auxiliary power demand before finalizing wire specs and overcurrent protection.
Trailer Wiring Harness Installation and Testing
Inspect the Connector and Wiring Before Installation
Check connector housing, terminals, and conductors for physical damage, corrosion, and debris. Confirm all terminals are fully seated and locked inside the connector housing.
Verify Pin Assignments and Ground Continuity
Using the official pinout diagram, confirm each circuit lands on the correct terminal. Check ground continuity according to the harness design; where appropriate, perform a voltage-drop test under load to identify excessive resistance in the ground path. Do not assume the trailer frame is the intended return path unless the system design specifies it.
Test Lighting, Braking, and Auxiliary Circuits
Activate each circuit sequentially and confirm correct lamp operation with appropriate test equipment. Pay special attention to load testing for electric brake and auxiliary power circuits, and validate fuse and circuit protection performance.
Inspect Routing, Strain Relief, and Wire Protection
Route harnesses away from moving components, high-temperature exhaust parts, and sharp metal edges. Secure wiring with cable clips and add strain relief at connector entry points to prevent tension from pulling terminals loose.
Common Trailer Wiring Harness Problems and Troubleshooting
The table lists common symptoms and where to start looking. It indicates investigation directions, not certain causes — always confirm before replacing parts.
|
Symptom
|
Possible cause
|
What to check
|
|---|---|---|
|
Lights do not work
|
Power interruption, high-resistance ground, or failed lamp
|
Power supply, ground continuity, and lamp circuit continuity
|
|
Turn signal operation is abnormal
|
Miswired pin assignment or poor terminal contact
|
Pin function mapping and connector terminal integrity
|
|
Lights flicker intermittently
|
Excessive contact resistance or unstable ground return
|
All connection points, ground path, and loaded circuit voltage
|
|
Auxiliary power feed is dead
|
Switched power disabled, blown fuse, or excessive line voltage drop
|
Power source, overcurrent protection, and loaded voltage across the wiring run
|
|
Connector suffers water ingress and terminal corrosion
|
Sealing damage or protection inadequate for the operating environment
|
Gasket integrity, connector housing, and environmental protection grade
|
Custom Trailer Wiring Harness Design and Manufacturing
Information Required for a Custom Harness Quote
-
Connector model, OEM part number, or complete pinout diagram
-
Circuit quantity, pin function, operating voltage, and load current per circuit
-
Wire gauge, conductor material, and insulation requirements
-
Total harness length and branch routing restrictions
-
Environmental specs: waterproof rating, temperature range, vibration, and corrosion resistance
-
Production volume and mandatory electrical test requirements
Connector Selection, Wire Specification, and Routing
In custom design, apply these requirements directly: confirm the mating connector interface, size conductors to the calculated load and voltage-drop limits, and lay out routing to avoid abrasion, heat, and water traps.
Electrical Testing and Production Quality Checks
Verification methods should be selected according to the harness design and applicable requirements. Typical checks may include circuit continuity, pin-to-pin mapping, functional testing, and insulation testing where appropriate. Test conditions and acceptance criteria should be defined before production. Specific tests or certifications are only claimed when supported by actual factory records.
Frequently Asked Questions
What Is the Difference Between a 4-Pin and a 7-Pin Trailer Connector?
A 4-pin connector typically carries only the basic lighting circuits: tail lamp, left/right turn/stop lamp, and ground. A 7-way trailer connector can support additional circuits for functions such as electric trailer brakes, reverse lights, and auxiliary power. The functions available depend on the connector standard and wiring configuration, so confirm the pinout before connecting the vehicle and trailer.
Can a 7-Way Trailer Connector Have Different Wire Colors?
Yes. Two identical-looking 7-way blade connectors can follow different color allocation rules (for example, an SAE-aligned scheme versus a traditional RV convention). Always verify pinout rather than trusting wire color alone.
How Do I Know Whether a Trailer Wiring Harness Is Compatible?
Confirm three core items: matching connector form factor on both vehicle and trailer, consistent pin function mapping, and matched circuit load capacity. Validate compatibility with pinout drawings and functional testing under the specified operating conditions.
What Wire Gauge Should Be Used for a Trailer Wiring Harness?
There is no universal wire gauge for all trailer harnesses. Conductor size is calculated from circuit current, total wire length, allowable voltage drop, ambient temperature, and wire bundling conditions. Never select wire size based only on pin count.
Can a Trailer Wiring Harness Be Customized for a Specific Application?
Yes. Custom assemblies can be built to match unique connector pinouts, custom wire specs, fixed length layouts, and specific environmental protection requirements for special tow vehicle and trailer combinations.
Conclusion
A reliable trailer wiring harness is selected and validated by connector type, pin configuration, and electrical compatibility rather than wire color alone. Following the selection, verification, and testing steps in this guide helps reduce wiring mismatches and identify common electrical problems before the trailer enters service. When standard off-the-shelf harnesses fail to meet connector configuration, circuit layout, length, or environmental requirements, a custom assembly may be appropriate; complete technical specifications help reduce compatibility errors and sample revisions.
