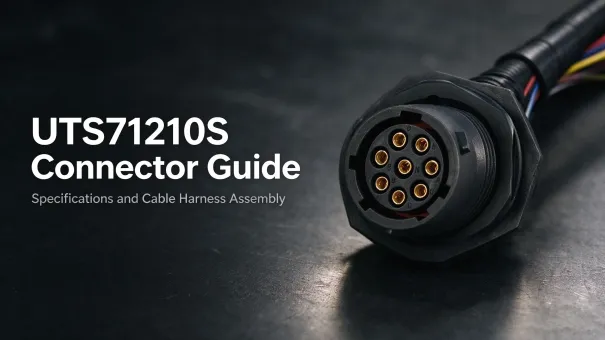

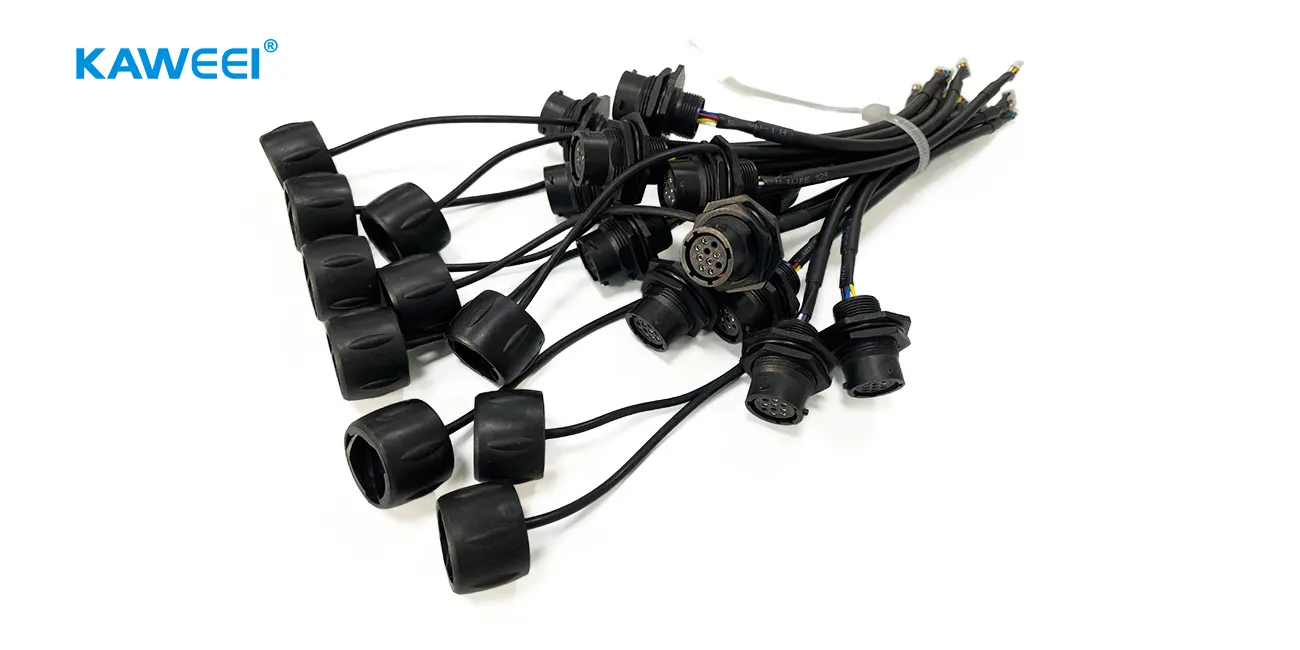

This guide helps engineers and buyers evaluate the Eaton Souriau UTS71210S circular panel-mount receptacle and build a fully sealed cable harness around it. One point should be clear from the start: the UTS71210S is a connector housing, not a finished cable assembly. Its environmental performance depends on the mating plug, contacts, cable, sealing components, panel installation, and assembly workmanship you choose for the complete system.
What Is the Souriau UTS71210S Connector?
Connector Type and Mounting Style

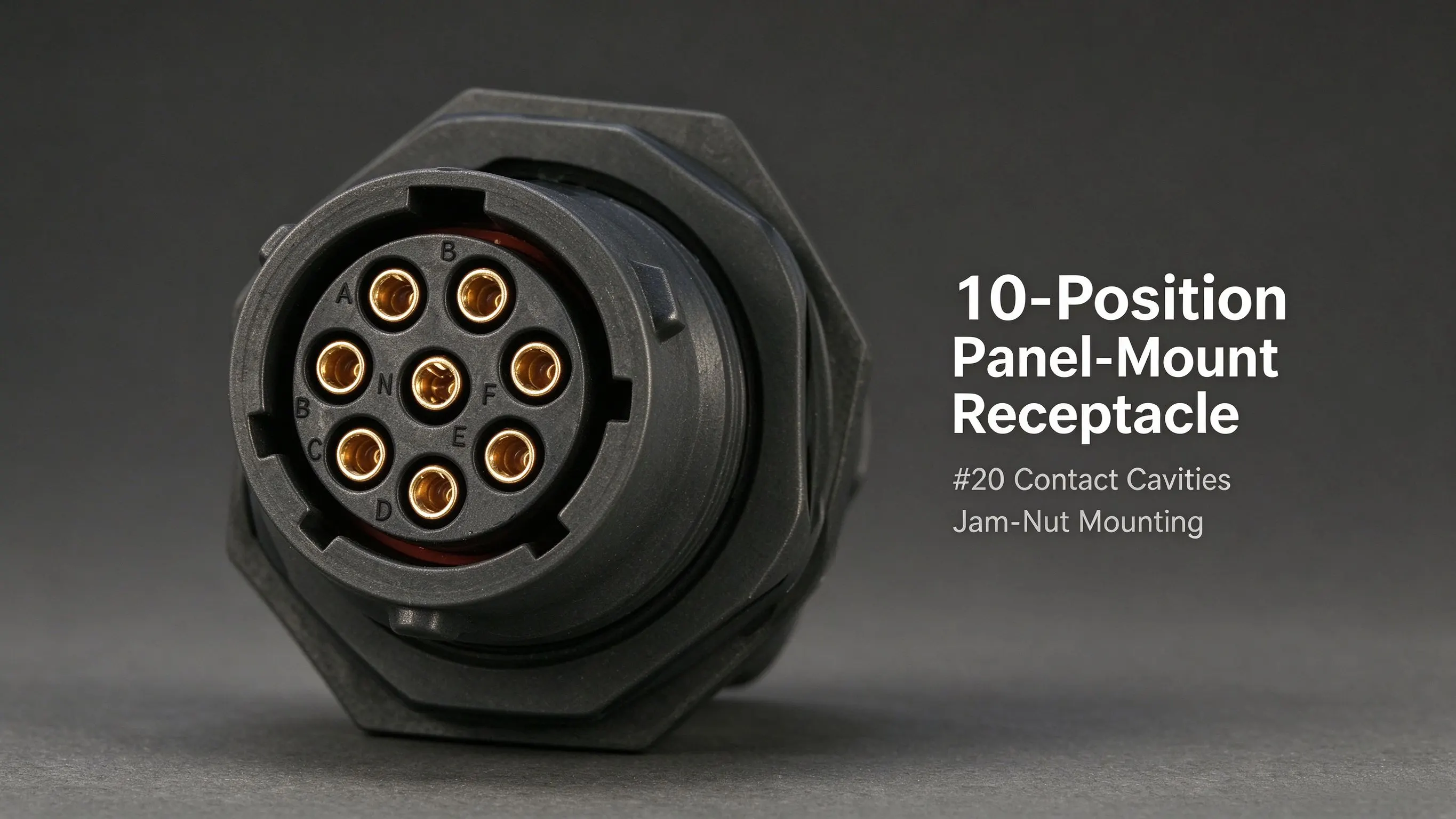

The UTS71210S belongs to the Eaton Souriau UTS plastic circular connector family. It is a 10-position female socket receptacle with jam-nut panel mounting. The bayonet coupling provides a positive locking mechanism when correctly engaged.
This shell ships without installed contacts. The ten cavities accept female crimp contacts that are ordered separately as Trim Trio snap-lock contacts. The housing has no integrated backshell, so cable sealing and strain relief depend on the mating plug and additional accessory parts.
Typical Applications and Design Considerations
Potential applications include outdoor industrial equipment, factory automation, agricultural machinery, outdoor lighting, and mobile equipment exposed to moisture, dust, or high-pressure washdowns. Evaluate the specific environmental requirements of each application before confirming suitability.
UTS71210S Connector Specifications
Electrical and Mechanical Specifications
|
Parameter
|
Verified / Listed
|
Notes
|
|---|---|---|
|
Manufacturer
|
Souriau / Eaton
|
Formerly Souriau Sunbank
|
|
Part number
|
UTS71210S
|
10-position jam-nut receptacle
|
|
Connector type
|
Circular panel-mount receptacle (female socket)
|
Crimp contacts sold separately
|
|
Positions / contact layout
|
10 positions; 1210 layout with ten #20 cavities
|
Confirm layout in the official catalog
|
|
Mounting style
|
Jam-nut panel mounting
|
Match the panel cutout and torque requirement
|
|
Contact termination
|
Crimp; Trim Trio removable snap-lock contacts
|
Confirm exact contact part number, wire range, and plating
|
|
Operating temperature
|
Confirm against the manufacturer datasheet
|
Verify for the specific configuration
|
|
Current rating
|
Confirm against the exact connector and contact specification
|
Do not assume a single value for all contact configurations
|
|
Voltage rating
|
Confirm the applicable UL / IEC rating and test conditions
|
Values vary by standard and product
|
|
Ingress protection
|
Confirm per exact model, mating state, and applicable standard
|
Family rating is not a per-harness guarantee
|
Ingress Protection and Environmental Limits

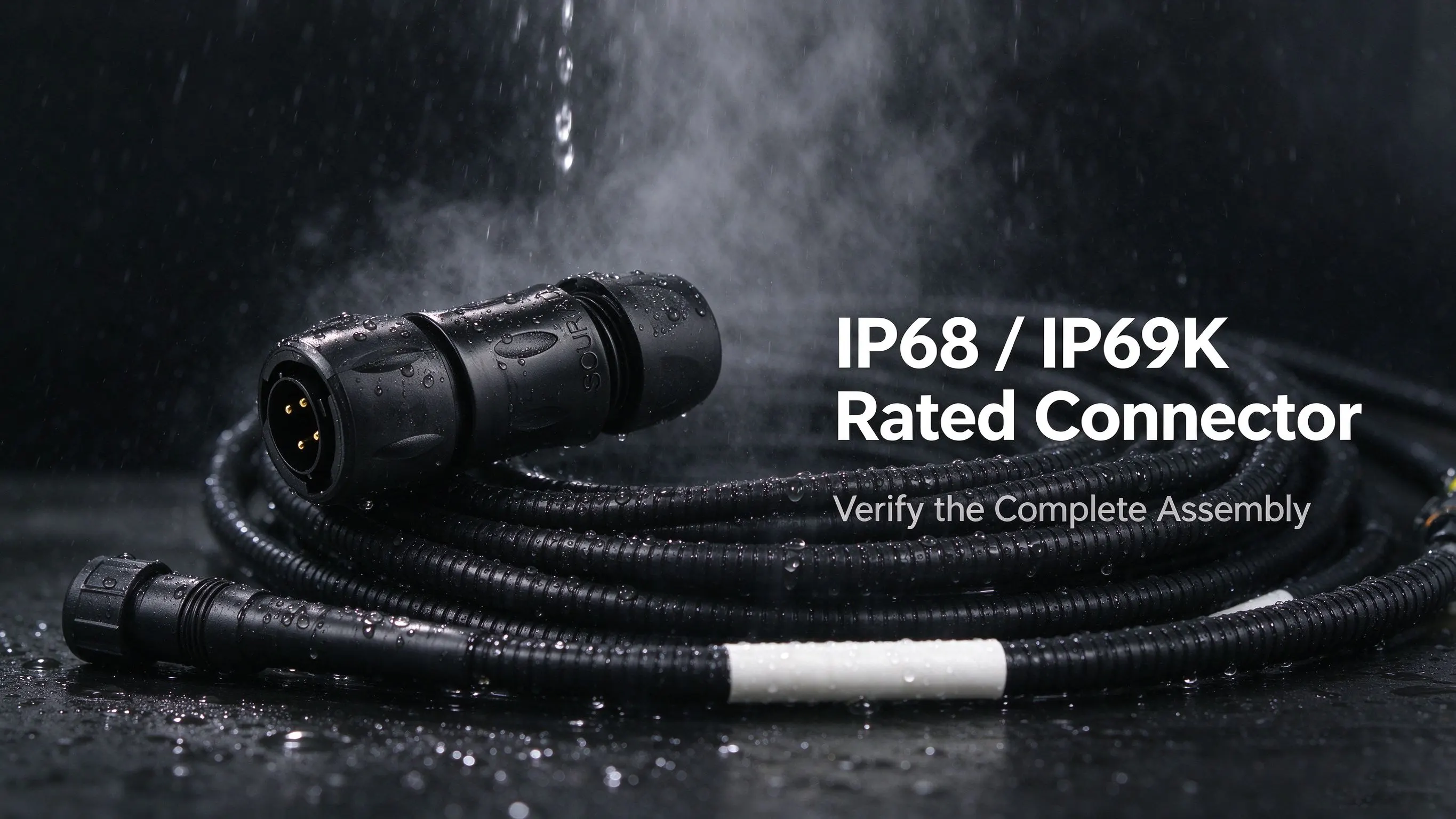

The Eaton Souriau UTS family offers configurations designed for IP68 and IP69K protection. For the UTS71210S, confirm the applicable protection rating, mating connector, sealing configuration, and test conditions in the official documentation before treating any IP grade as verified.
The finished harness requires separate evaluation where its cable entry, panel interface, or other components affect ingress protection. The protection rating of the connector alone does not extend automatically to the complete assembly.
Where the catalog references a Hi-Seal variant for maintaining protection in an unmated state, verify the exact product model and conditions. Do not merge IP67, IP68, and IP69K into a single blanket rating; confirm which standard (for example, IEC 60529) applies to your working conditions.
Selecting Mating Connectors, Contacts, and Cable
Mating Connector and Contact Selection
- Mating plug: Pair the panel receptacle with a compatible UTS plug of matching position count and gender. Confirm the exact part number, pinout, and seal configuration.
- Contact selection: The UTS71210S uses the 1210 layout with ten #20 contact cavities. Confirm the compatible contact part number, conductor range, and approved crimp tooling from the official catalog and contact specification. Do not recommend a specific contact part number before this compatibility is confirmed.
- Contact gender matching: The receptacle uses female socket contacts; the mating plug uses male pin contacts. Confirm the contact layout and pin correspondence of both connectors rather than assuming a standard configuration.
Contacts are not included with the UTS71210S. Confirm the exact contact part number and its conductor range with the manufacturer's contact specification before ordering, and never infer a wire size from the housing alone.
Wire Size, Current Rating, and Cable Construction
Do not rely on a single current figure for the connector. The ampacity of each circuit depends on the selected contact's wire range and rated current, the conductor cross-section and insulation, ambient temperature derating, and bundle heat rise in a multi-conductor cable. Verify ratings against the applicable contact and connector specifications.
For the cable itself, match the outer diameter to the sealing structure of the cable-side plug, choose multi-core round cable with a tight outer jacket for outdoor use, and separate power and signal circuits where voltage differential creates EMI concerns.
Cable Glands, Seals, and Strain Relief
The cable entry and panel interface are important sealing points to inspect during design validation and assembly testing. The sealing and strain-relief parts depend on the specific mating plug configuration and its accessory list, so confirm them against that plug configuration's official assembly instructions rather than assuming a common structure. On the panel side, verify the panel sealing structure separately.
UTS71210S Cable Harness Assembly Process
The assembly process should follow the approved drawing, contact specification, and crimping procedure. Inspect each stage before proceeding to the next.
Confirm the Drawing and Pinout
Lock in the pin assignment diagram, wire numbering, and color coding. Verify pin gender and contact part number against the bill of materials, and confirm the panel cutout size and jam-nut mounting torque.
Cut, Strip, and Crimp the Wires
Set the wire stripping length to match the selected contact's crimp barrel. Improper stripping can affect crimp quality, insulation distance, or conductor exposure. Use the specified crimp tool and process for the selected contact, and verify crimp quality against the applicable requirements, including pull-out force sampling where specified.
Insert Contacts and Verify Locking
Fully seat each crimped contact until the snap-lock engages in the insert cavity. Apply a light backward tug to confirm no contacts back out, and check each pin position against the pinout drawing.
Panel-Mount Receptacle Installation
On the receptacle side, verify the panel cutout dimension, install any panel sealing, and tighten the jam nut to the specified torque. This side is the equipment interface and is separate from the cable-side sealing.
Cable-Side Plug Assembly
On the cable side, follow the selected plug configuration's official assembly instructions. Install the specified sealing parts and strain relief for that configuration, feed the cable through the housing, and tighten the compression gland evenly if specified for the selected plug configuration. Confirm the cable outer diameter is within the range allowed by the configuration and that the rear cable seal, where present, is fully compressed with no gaps.
Inspect the Finished Harness
- All contacts fully locked with no back-out.
- Rear cable seal fully compressed with no gaps around the jacket.
- No damaged wire insulation or cut outer jacket.
- Correct pinout continuity with no shorts between circuits.
- Bayonet coupling engages smoothly and latches securely.
Waterproof Testing and Quality Inspection
Test methods depend on the product requirements, applicable standards, and the object being tested. Connector IP ratings are not a substitute for harness-level validation, and continuity testing is not the same as ingress protection testing.
Electrical Continuity and Pinout Testing
Verify continuity across each circuit and confirm the pinout matches the drawing. This establishes correct wiring but does not prove all electrical performance. Whether insulation resistance or dielectric testing is required depends on the product requirements and applicable specifications; not every harness project needs the same test items or test voltages.
Insulation Resistance and Dielectric Testing, Where Required
Where the specification requires it, measure insulation resistance and dielectric withstand against the applicable criteria and conditions. Confirm the test voltage and acceptance values against the contract requirements.
Ingress Protection Testing and Acceptance Criteria
For ingress protection, define the test configuration before testing. Depending on the application, validation may need to include the mated connector pair, cable entry, panel interface, and installed enclosure. Specify the applicable test method, conditions, and acceptance criteria in the product requirements.
Common Assembly Defects and Their Causes
- Contacts that are not fully seated or that back out under tension, which may cause electrical connection or retention failures.
- Missing or damaged rear grommets and seals, which open a leakage path.
- Cross-wiring that passes continuity checks but does not match the pinout drawing.
- Improper stripping or crimping that affects crimp quality, insulation distance, or conductor exposure.
Common Selection and Assembly Mistakes
- Ordering the housing but missing the separately purchased contacts.
- Selecting a mating plug of the wrong gender, position count, or seal configuration.
- Choosing a cable whose outer diameter does not match the sealing structure.
- Relying on the connector's IP rating as proof of the full harness's protection.
- Over-current operation without derating, which can cause excessive heating and damage to the cable or connector components.
UTS71210S Cable Harness Procurement Checklist
Include the following information in the RFQ so the supplier can confirm component compatibility, pricing scope, and acceptance requirements.
- Full connector part number (UTS71210S) and the mating plug part number.
- Contact part number and its conductor range, matched to the wire AWG.
- Full pinout drawing, wire numbering, and conductor color code.
- Cable specification: conductor AWG, number of cores, jacket material, total outer diameter, and harness length.
- Mechanical requirements: jam-nut mounting torque, panel cutout, and strain relief design.
- Environmental requirements: target ingress protection rating, working temperature range, and salt-spray requirements, if applicable.
- Electrical acceptance tests: continuity, insulation resistance, and high-potential testing where required.
- Document controls: drawing revision, batch traceability, and applicable workmanship and acceptance requirements, including IPC/WHMA-A-620 where it applies to the process and acceptance criteria.
Frequently Asked Questions
Is UTS71210S a complete waterproof cable assembly?
No. The UTS71210S is a 10-position panel-mount connector housing. Contacts, the mating plug, cable, seals, and strain relief must be sourced and assembled separately to build a finished harness.
Are crimp contacts included with UTS71210S?
No. Contacts are sold separately as Trim Trio snap-lock components. The housing ships with empty cavities.
Does the connector's IP rating guarantee the same rating for the finished harness?
No. The connector's IP rating applies to the mated connector under defined conditions. The finished harness's ingress protection depends on the complete design and must be validated separately.
What information is needed to request a custom UTS71210S cable harness?
Provide the full connector bill of materials, pinout drawing, cable specifications and length, target ingress protection grade, electrical test requirements, mounting dimensions, and applicable workmanship standards. Without this data, a supplier cannot provide accurate pricing and consistent quality.
References
- Eaton Souriau UTS Series Official Catalog: https://www.eaton.com/content/dam/eaton/products/wiring-devices-and-connectivity/connectors-cable-assemblies/fiber-optic-connector---uts-series/eaton-souriau-waterproof-plastic-connector-UTS-catalog-en-us.pdf — use to confirm the UTS71210S 1210 layout, contact type, and connector configurations; the catalog lists it as a jam-nut receptacle with separately purchased crimp contacts.
- Eaton UTS Series product page: https://www.eaton.com/us/en-us/catalog/industrial-connectors-assemblies/UTS-series.html — for family-level sealing capability, bayonet coupling structure, and compatible series; do not treat the family IP68/IP69K as a property of every UTS71210S configuration.
- Eaton Trim Trio Series: https://www.eaton.com/jp/ja-jp/catalog/industrial-connectors-assemblies/Trim-Trio-series.html — for contact families, types, and applicable ranges.
- IEC 60529 (Degrees of Protection Provided by Enclosures, IP Code): https://webstore.iec.ch/en/publication/2447 — for the classification of enclosure ingress protection.
- IEC 61984 (Connectors - Safety requirements and tests): https://webstore.iec.ch/en/publication/6223 — for connector safety requirements and testing; whether it applies to a specific product should be judged against the product specification and scope.
DigiKey and RS Components product pages may be used as supplementary cross-checks but should not replace the manufacturer's original documentation.
